Deiona Abraham (34055) - Florentina Stroissnigg (33724) - Mhwae Mhwae Kyaing Kyaing (33186)

by Mhwae Mhwae Kyaing Kyaing
Cat owners often face the daily challenge of their pets meowing or scratching at the door only to go outside for a few minutes before wanting to come back in. While cats are famously independent and occasionally mischievous, their quirky behavior is part of what makes them so lovable. To improve the coexistence between cats and their owners, Project PAWTAL developed an automatic flap door system designed for quick setup. PAWTAL allows cats to move freely while keeping their owners informed of their whereabouts in real time by notifying via email.

by Florentina Stroissnigg
For this project an ESP32 S3 Dev Module Microcontroller was used. Additionally, a RC522 RFID Sensor with the tag and a PIR motion sensor enabled the detection of the cat, while two Micro Servo Motor SG90 serve as locks to keep the cat door closed. Their functions are broken down below:

• The ESP 32 S3 Dev Module is a microcontroller with Wi-Fi and Bluetooth capabilities with multiple GPIOs (General-Purpose Input/Outputs).
• The RC522 is a RFID (Radio Frequency Identification) Sensor using 3.3V. It is a wireless technology that uses radio waves to identify and track objects, animals, or people. To communicate with the micro controller the RC522 uses the Serial Peripheral Interface (SPI) communication protocol.
• The PIR motion sensor uses 3.3V. It works by detecting a change in infrared levels within its field of view. To communicate with the microcontroller, the sensor uses a dingle digital pun, that sends a HIGH signal when motion is detected
• The SG90 Servo Motor are small actuators using 5V provided by the ESP32’s V output pin. Since the motor only acts as a lock, and there is no significant mechanical load acting on it.
• Jumper wires to connect the sensors and actuators to the microcontroller
• Power source connection to provide the prototype with 5V
• cat door

by Deiona Abraham
The software for this project was developed using Arduino IDE to control the hardware components. MQTT, HiveMQ, and Node-RED were used to establish a client-based network to enable email notifications about the cat's whereabouts.

• Arduino IDE is an open-source Integrated Development Environment used to write, develop, compile and upload the code to microcontrollers such as the ESP32-S3 Dev Module. It supports C/C++ based programming and offers a wide range of libraries.
  Libraries needed for Pawtal:

  • ESP32 Board Package → used to develop codes for ESP32 boards in Arduino IDE

  • SPI.h - used for the SPI communication between ESP32 and the RC522 RFID Sensor

  • MFRC522.h → used for the interface with the RC522 RFID module and to read RFID tags

  • ESP32Servo.h → used to control the SG90 micro servo motors via PWM

  • WiFi.h → Connects the ESP32 to a Wi-Fi network for wireless communication
  • MQTTClient.h → Enables MQTT protocol functions to publish and subscribe to messages between devices
  • WiFiClientSecure.h → Allows secure (TLS/SSL) communication over Wi-Fi, required for connecting to brokers like HiveMQ over HTTPS

• MQTT (Message, Queue, Telemetry, Transport) is a publish-subscribe protocol commonly used in IoT (internet of things) systems. It is a reliable and efficient method to establish communication between machines and devices, eliminating the need for wire to wire connection, while still allowing them to communicate indirectly.
  • Clients, members of a network, can be defined as a data source or sender who publishes data to the network. In our project, our sensors mentioned above (RC522 and PIR) serve as the data publishers HiveMQ, our broker serves as an intermediate who then distributes the data received to other clients. Likewise, clients can subscribe to the network and receive the data. In our project, once the data was sent to HiveMQ, and received by NodeRED.
• HiveMQ: A broker that establishes a bond between the different clients (subscriber or publisher) as it receives from the publisher, then filters and distributes the message to the subscriber allowing bi-directional data movement.
• NodeRED: is a visual programming tool that allows the user to see the flow of messages.
  Libraries needed for Pawtal:


by Florentina Stroissnigg
To create the prototype the actuators and sensors were connected to the board via breadboard and jumper wires as described in figure 1. Then the breadboard, sensors and actuators were positioned and glued on a cardboard box to test the functionality of the prototype. This first prototype can be seen in image 1. To test the functionality even further, a second was developed using a cat door, another cardboard box and the components, which can be seen in image 2.

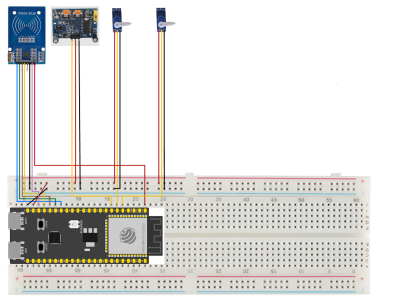

Fig. 1: Wiring model

Fig. 2: Prototype 1.0 Fig. 3: Prototype 2.0

by Florentina Stroissnigg and Deiona Abraham
The code was developed using the Arduino IDE.
Step one of the coding process involved importing and including all necessary libraries. For better readability and maintainability, all programmable pins connected to actuators and sensors were defined as local constants at the beginning of the code.

#include <SPI.h>
#include <MFRC522.h>
#include <ESP32Servo.h>
#include <WiFi.h>
#include <MQTTClient.h>
#include <WiFiClientSecure.h>  // For TLS/SSL

// RC522 (RFID) SPI Pins
#define SDA_PIN    10
#define SCK_PIN    11
#define MOSI_PIN   12
#define MISO_PIN   13
#define RST_PIN    14

// Servo Pin
#define SERVO_PIN  6
#define SERVO_PIN_2 5
// PIR Motion Sensor Pin
#define PIR_PIN    7

Next, global variables were defined to represent the prototype's internal states, such as whether the cat is inside, whether motion has been detected, and the state of the servos. These variables allow the program to keep track of the system’s current logic status throughout runtime and enable state-based decision-making within the loop.

bool catInside = false;
bool waitingForMotion = false;
unsigned long motionStartTime = 0;
bool motionDetected = false;

int pirSignal = 0;
int rfidWindow = 0;
int servoState = 0;

MFRC522 rfid(SDA_PIN, RST_PIN);
Servo myServo1;
Servo myServo2;

To enable communication over the internet, WiFi credentials and MQTT broker information (HiveMQ Cloud) were defined. This includes the broker address, port number, client ID, credentials, and the MQTT topic to which the system will publish updates. These configurations allow the ESP32 to establish a secure connection to the broker and publish MQTT messages when the cat enters or exits.

// WiFi credentials
const char WIFI_SSID[] = "Mein Hotspot";
const char WIFI_PASSWORD[] = "Ra1nbowFlo";

// MQTT broker config (HiveMQ Cloud)
const char MQTT_BROKER_ADDRESS[] = "a970366178a840aa8a2c2230bab330aa.s1.eu.hivemq.cloud";
const int MQTT_PORT = 8883; // TLS port
const char MQTT_CLIENT_ID[] = "";
const char MQTT_USERNAME[] = "hivemq.webclient.1751197217617"; // Optional
const char MQTT_PASSWORD[] = ";?Q<%F986R7ZliScYakj"; // Optional

// MQTT topic
const char PUBLISH_TOPIC[] = "AMC/MQTT/rfid/tag";

WiFiClientSecure wifiClient;
MQTTClient MQTTClient;

The function connectToWiFi() is used to establish a WiFi connection using the credentials defined earlier. Serial outputs are used to provide feedback on the connection status via the Serial Monitor. This function ensures that the ESP32 is successfully connected to the network before any MQTT communication can take place

void connectToWiFi() {
  Serial.print("Connecting to WiFi");
  WiFi.begin(WIFI_SSID, WIFI_PASSWORD);
  while (WiFi.status() != WL_CONNECTED) {
    delay(500);
    Serial.print(".");
  }
  Serial.println("\nWiFi connected.");
  Serial.println(WiFi.localIP());
}

The function connectToMQTT() handles the MQTT client connection. It configures TLS settings using a simplified certificate check (setInsecure()), initializes the client with connection options, and attempts to connect using the credentials provided. A successful connection to the broker is critical for the notification system to function properly, as MQTT is the method used to report the cat’s movements.

void connectToMQTT() {

  wifiClient.setInsecure();

  MQTTClient.begin(MQTT_BROKER_ADDRESS, MQTT_PORT, wifiClient);
  MQTTClient.setOptions(60, true, 1500);
  while (!MQTTClient.connect(MQTT_CLIENT_ID, MQTT_USERNAME, MQTT_PASSWORD)) {
    Serial.print(".");
    delay(1000);
  }
  Serial.println("\nMQTT connected.");
}

The setup() function runs once when the ESP32 boots up. It initializes the serial interface, connects to WiFi and MQTT, initializes the RFID reader via SPI, sets up the two servo motors with their respective pins and signal ranges, and configures the PIR motion sensor as an input. This function prepares the hardware and network environment to ensure the system is ready to process RFID scans and detect motion events from the start.

void setup() {
  Serial.begin(115200);
  delay(500);

  connectToWiFi();
  connectToMQTT();

  SPI.begin(SCK_PIN, MISO_PIN, MOSI_PIN, SDA_PIN);
  rfid.PCD_Init();

  myServo1.setPeriodHertz(50);
  myServo1.attach(SERVO_PIN_1, 500, 2400);
  myServo1.write(0); // locked

  myServo2.setPeriodHertz(50);
  myServo2.attach(SERVO_PIN_2, 500, 2400);
  myServo2.write(0); // locked

  pinMode(PIR_PIN, INPUT_PULLUP);

  Serial.println("System ready. Waiting for tag...");
}

The loop() function runs continuously during the system's operation. It begins by maintaining the MQTT connection and reading the PIR sensor’s state. It then performs two main tasks:

RFID Detection: If a new RFID tag is present and the system is not already waiting for motion, it unlocks the door by turning both servo motors to 90°, records the current time, and sets a flag to begin motion monitoring.

Motion Monitoring: While the system is waiting for motion, it checks whether motion has occurred within a 5-second window. If motion is detected, it toggles the catInside state and publishes a corresponding MQTT message (“Cat is now INSIDE” or “Cat is now OUTSIDE”). Regardless of detection, it re-locks the door and resets the state. This logic ensures that the door only unlocks when the registered RFID tag is detected and verifies that the cat actually entered or exited using the motion sensor. The result is then communicated via MQTT to allow remote monitoring.

void loop() {
  MQTTClient.loop();  // Maintain MQTT connection
  pirSignal = digitalRead(PIR_PIN);

  // Step 1: RFID detected
  if (!waitingForMotion && rfid.PICC_IsNewCardPresent() && rfid.PICC_ReadCardSerial()) {
    Serial.println("RFID tag detected. Unlocking...");
    myServo1.write(90);
	myServo2.write(90);
    servoState = 90;

    motionStartTime = millis();
    waitingForMotion = true;
    motionDetected = false;

    rfid.PICC_HaltA();
    rfid.PCD_StopCrypto1();
  }

  // Step 2: Motion check
  if (waitingForMotion) {
    rfidWindow = 1;
    if (pirSignal == HIGH) {
      motionDetected = true;
    }
    if (millis() - motionStartTime >= 5000) {
      myServo1.write(0);
	  myServo2.write(0);
      servoState = 0;
      if (motionDetected) {
        catInside = !catInside;
        String message = catInside ? "Cat is now INSIDE 🐱🏠" : "Cat is now OUTSIDE 🐱🌳";
        MQTTClient.publish(PUBLISH_TOPIC, message.c_str());
        delay(1000);
      } else {
        delay(1000);
		}
      waitingForMotion = false;
      rfidWindow = 0;
    }
  } else {
    rfidWindow = 0;

  delay(50);
}

by Mhwae Mhwae Kyaing Kyaing
One of the main limitations encountered during the development of PAWTAL is the short detection range of the RFID sensor, which is largely due to the small antenna size, 60mm × 40 mm (Osoyoo, 2017). The effective range of an RFID system is generally proportional to the size of its antenna (Rose & Kurtz, 2016). In our prototype, the detection range is less than 2 cm, requiring the cat to be in very close proximity to the door for the tag to be recognized.
This limitation could be addressed in future improvements through two potential approaches. Firstly by using an ultra-high frequency (UHF) RFID system operating at 868 MHz, which offers significantly greater range but comes at a high cost which may not be suitable for a student project. Secondly by increasing the size of the tag’s antenna, which could enhance the detection range but requires technical knowledge and resources beyond the current scope of the team.
NodeRED is subscribed to all topic messages including the message that is sent when the door is unlocked but no motion is detected. This message is then sent to the email. While the other messages notify of the cat's whereabouts, this message is functionally useless and clutters the email inbox. To improve efficiency, later updates to the nodeRED flow’s function node should disallow the continued flow of unwanted messages.

by Mhwae Mhwae Kyaing Kyaing
Project Pawtal has successfully integrated sensor technology and MQTT communication into a fully functional prototype with real-time data access. The system demonstrates a practical and accessible approach to automating a pet door. Despite the limited range of RFID antenna and minor issues, this project presents a strong proof of concept as a versatile product with future applications and improvements. Future developments could include the integration of location tracking sensors, AI-based behavior analysis, or facial recognition technology to eliminate the need for RFID tags. Additionally, replacing the tag with a pet microchip would further improve the user experience. Moreover, PAWTAL can be further developed into a more complete solution by adding features like a mobile/web app for real-time monitoring and integration with automated pet feeders.

Osoyoo.(2017, September 11).Arduino lesson – RFID RC522. Osoyoo Learning. https://osoyoo.com/2017/09/11/arduino-lesson-rfid-rc522/

Rose, M., & Kurtz, J.(2016, May 16). NFC – A closer look [Presentation].Future Electronics. http://www.FutureElectronics.com
